Marble, Granite, and Quartz Slab Transportation and Storage Solutions: Best Practices

2025-03-11

Quick Summary:
To move granite slabs safely, factories need suitable lifting and transport equipment, adequate rated capacity, stable slab support, clear travel routes, trained operators and controlled transfer procedures. Effective slab handling safety helps reduce edge chips, surface scratches, slab breakage, handling delays and unnecessary material loss. The correct method depends on slab dimensions, weight, travel distance, factory layout and whether the stone is being lifted, transported, staged, fabricated or loaded.
Table of Contents Hide

How to Move Granite Slabs Safely Without Damage

Knowing how to move granite slabs safely is essential for stone factories, warehouses, distributors and fabrication shops.

Granite is strong in normal use, but large slabs can still be damaged by impact, twisting, poor support or uncontrolled movement.

Improper handling may lead to:

  • Chipped edges.
  • Broken corners.
  • Surface scratches.
  • Cracked slabs.
  • Damaged finished countertops.
  • Production delays.
  • Equipment damage.

Effective slab handling safety depends on more than simply using a crane or transport cart.

The complete process should consider:

  • Slab dimensions.
  • Actual or estimated weight.
  • Existing cracks or weak areas.
  • Lifting method.
  • Support geometry.
  • Transport equipment.
  • Floor condition.
  • Aisle width.
  • Travel distance.
  • Destination support.

The objective is not simply to move stone from Point A to Point B.

The objective is to move granite through storage, fabrication, inspection and loading with the minimum practical number of handling steps while maintaining stable support throughout the process.

Why Granite Slab Handling Requires Special Attention

Granite slabs may appear extremely rigid, but large-format stone can still be vulnerable to poor handling.

Common damage includes:

  • Chipped corners.
  • Broken edges.
  • Surface scratches.
  • Cracks around natural weak areas.
  • Damage from direct steel contact.
  • Breakage during sudden movement.

Damage does not need to destroy the entire slab to create a financial loss.

A small chip or crack may make a premium slab unsuitable for the original countertop or architectural project.

Stone businesses should therefore treat slab transport as part of product-quality control rather than only as a warehouse task.

The Safe Granite Handling Process

A professional granite-handling workflow can be simplified into five stages:

Inspect → Lift → Support → Transport → Transfer

Stage Main Objective Typical Equipment
Inspect Identify load, dimensions and existing damage Visual inspection and load information
Lift Raise the slab under controlled conditions Clamp, vacuum lifter, crane, lifting beam or suitable forklift attachment
Support Provide stable contact before releasing lifting equipment A-frame, slab cart, storage rack or staging frame
Transport Move stone through a controlled route Slab transport cart, trolley, A-frame cart or powered cart
Transfer Place the slab securely at the destination Crane, lifter, worktable or storage rack

Marble, Granite, and Quartz Slab Transportation

1. Know the Slab Weight Before Moving It

Before moving granite, operators should know or reasonably estimate the slab weight.

Every component in the load path should have sufficient rated capacity.

This may include:

  • Slab lifting clamp.
  • Vacuum lifter.
  • Lifting beam.
  • Overhead crane.
  • Forklift attachment.
  • Slab transport cart.
  • A-frame transport cart.

Do not check only the cart.

The entire handling system must be suitable for the intended load.

A useful basic slab-weight calculation is:

Weight = Length × Width × Thickness × Material Density

Actual granite density varies, so supplier or material-specific data should be used where available.

2. Inspect the Granite Slab Before Handling

Before lifting begins, inspect the slab for visible conditions that may affect movement.

Check for:

  • Existing cracks.
  • Edge chips.
  • Natural fissures.
  • Previous impact damage.
  • Cutouts.
  • Narrow sections.
  • Surface contamination.

If the slab already contains vulnerable areas, the lifting and support method may need to be adjusted.

Recording pre-existing damage also makes it easier to identify whether additional defects occurred during transport.

3. Choose the Right Lifting Method

The correct lifting method depends on slab dimensions, weight, surface condition, orientation and available equipment.

Slab Lifting Clamp

A slab lifting clamp can be used with a suitable crane or lifting system to grip compatible slabs.

The clamp should match:

  • Slab thickness.
  • Load weight.
  • Required gripping range.
  • Material condition.

Buyers comparing stone lifting systems can also review Speedone slab lifting clamp solutions.

Vacuum Lifter

A vacuum lifter can provide surface-based lifting for compatible stone materials.

Suitability depends on factors such as:

  • Surface condition.
  • Porosity.
  • Load weight.
  • Suction-pad configuration.
  • Equipment rating.

Lifting Beam

A lifting beam can help create appropriate lifting points or distribute loads in certain material-handling operations.

The complete rigging arrangement should be matched to the intended load.

Forklift Attachment

Suitable forklift attachments can extend forklift functionality for certain granite-handling tasks.

However, the complete forklift + attachment + load configuration should be evaluated rather than considering the attachment capacity alone.

Factories comparing forklift-based lifting methods can review Speedone forklift lifting equipment.

4. Keep Granite Slabs Properly Supported

Stable support is one of the most important principles of slab handling safety.

During movement, the slab should not be allowed to:

  • Swing excessively.
  • Rotate unexpectedly.
  • Rest on an unsupported corner.
  • Strike the floor.
  • Strike a rack or machine.
  • Lean against an unstable object.

Whenever the slab moves from lifting equipment to transport equipment, the receiving support should be ready before the lifting device releases the load.

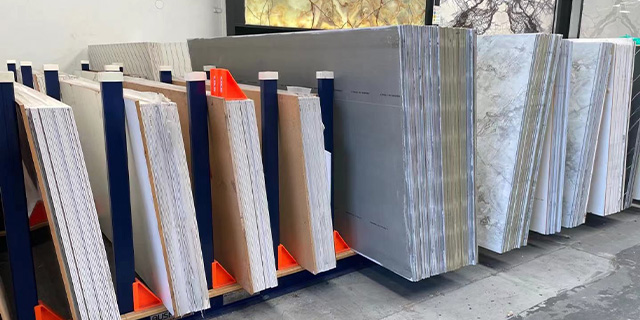

Marble Granite Quartz stone slab storage rack
Marble Granite Quartz stone slab storage rack

5. Use an A-Frame for Suitable Slab Transport

A-frame transport carts are widely used because they provide angled support for slabs and panels during movement.

A double-sided A-frame may support material on both sides when permitted by the equipment design, rated capacity and intended loading configuration.

Common applications include:

  • Storage-to-cutting movement.
  • Production staging.
  • Finished countertop transport.
  • Loading preparation.

Factories handling heavier materials can review this 2000 kg double-sided A-frame cart for granite and panel transport.

Buyers can also compare Speedone slab transport A-frame solutions.

6. Protect Stone Contact Areas

Granite should not repeatedly contact bare steel surfaces during movement where suitable protective contact materials are intended by the equipment design.

Protective materials may help reduce:

  • Edge impact.
  • Surface scratches.
  • Slab-to-metal abrasion.
  • Localized contact damage.

Protection should remain securely attached and should not compromise load stability.

7. Keep the Slab in a Stable Orientation

Large granite slabs are often handled in a controlled near-vertical or inclined orientation during warehouse and factory movement.

The actual support angle should follow the equipment design and manufacturer’s instructions.

Unnecessary orientation changes should be minimized because every additional rotation creates another handling step.

8. Plan the Travel Route Before Moving

Do not begin moving the slab until the complete travel route has been checked.

Look for:

  • Narrow aisles.
  • Sharp corners.
  • Floor joints.
  • Drainage channels.
  • Slopes.
  • Stone chips or debris.
  • Pallets or tools.
  • Forklift traffic.
  • Pedestrian traffic.

Remember that a loaded cart may be substantially wider and harder to turn than the empty equipment.

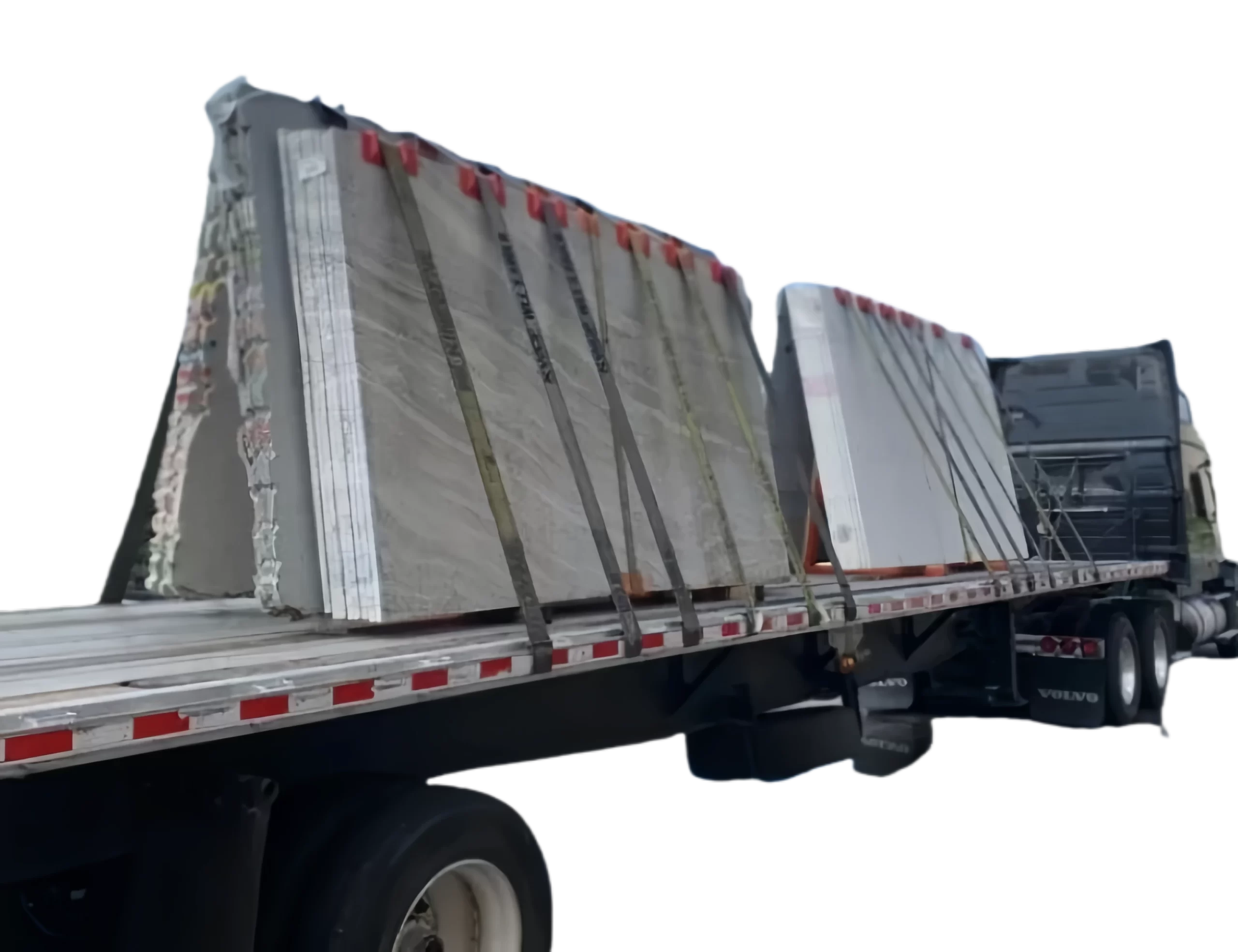

Transport Marble Slab

9. Understand the Hidden Cost of Slab Damage

Granite damage costs more than the replacement price of the stone.

Additional consequences may include:

  • Re-cutting.
  • Additional fabrication labor.
  • Machine downtime.
  • Delayed orders.
  • Additional packaging.
  • Repeated transport.
  • Lost production capacity.

A slab with relatively small damage may also become unsuitable for its original project.

Factories evaluating these costs can review this analysis of the hidden costs of stone slab damage during transport.

10. Move Granite at a Controlled Speed

Faster movement does not automatically mean higher productivity.

Excessive speed can contribute to:

  • Sudden load movement.
  • Reduced steering control.
  • Greater stopping distance.
  • Stronger impact if an obstacle is contacted.
  • Less reaction time.

Heavy stone should be moved with controlled acceleration, turning and stopping.

11. Avoid Sudden Direction Changes

A fully loaded slab cart behaves differently from an empty cart.

Sudden steering changes can increase lateral load movement.

Operators should:

  • Approach corners slowly.
  • Use wider turns where possible.
  • Avoid abrupt steering.
  • Maintain visibility around the load.

12. Use Controlled or Self-Locking Transport Solutions Where Appropriate

Some transport systems include clamping or self-locking functions intended to improve load control for suitable materials.

This may be useful when moving slabs, countertops or panels through busy fabrication environments.

Factories exploring this type of equipment can review how a self-locking trolley can support controlled slab handling.

13. Select the Correct Slab Transport Cart

Not every cart is suitable for every granite application.

Before purchasing, compare:

  • Rated load capacity.
  • Maximum slab dimensions.
  • Support geometry.
  • Frame width.
  • Wheel configuration.
  • Turning radius.
  • Floor conditions.
  • Travel distance.
  • Manual or powered movement.
  • Finished-product requirements.

For a more detailed selection process, read this guide on how to choose the right slab transport cart for stone factories.

Buyers can also review Speedone slab transport carts for different workshop applications.

14. Check Wheel and Floor Compatibility

Wheel selection has a significant effect on maneuverability and operator effort.

A cart designed for smooth concrete may behave differently on:

  • Rough industrial floors.
  • Outdoor surfaces.
  • Expansion joints.
  • Drain channels.
  • Sloped areas.
  • Floors contaminated with slurry or debris.

Wheel diameter, material, bearing design and load rating should be matched to the actual operating environment.

15. Reduce Unnecessary Granite Slab Transfers

Every transfer between two pieces of equipment creates additional handling time.

For example, an inefficient process may look like:

Storage Rack → Crane → Forklift → A-Frame → Cutting Table

If the process can safely remove one or more unnecessary transfer stages, the factory may reduce both labor and damage opportunities.

The goal should be a direct material route wherever practical.

16. Identify Slab Transport Bottlenecks

A transport bottleneck occurs when stone cannot move through the factory as quickly as production requires.

Possible causes include:

  • Too few suitable transport carts.
  • Narrow aisles.
  • Poor rack positioning.
  • One crane serving multiple production areas.
  • Repeated transfers.
  • Finished products blocking transport routes.
  • Material waiting for shared equipment.

Factories should observe where employees and machines spend time waiting for stone.

This article on solving slab transport bottlenecks in stone workshops explains why material movement can become a hidden production cost.

17. Use Different Equipment for Different Stages

Trying to use one piece of equipment for every stage often creates inefficiency.

Production Stage Possible Equipment
Truck / Container Unloading Crane, lifting beam, suitable slab lifter
Main Storage Slab rack or A-frame storage system
Internal Transport Slab transport cart, trolley or powered cart
Machine Loading Crane, vacuum lifter or suitable tilting equipment
Finished Product Movement A-frame cart, dolly or countertop transport cart

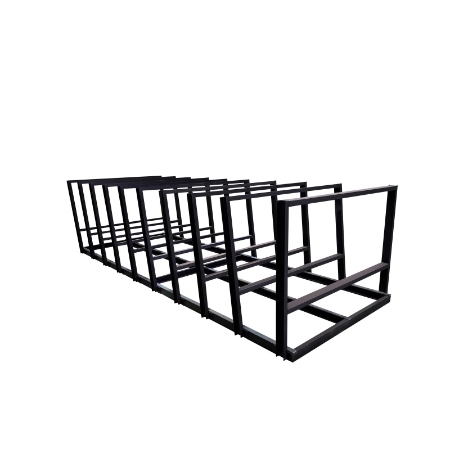

Removable Quartz Slab Rack for Efficient Stone Industry Storage and Handling
Removable Quartz Slab Rack for Efficient Stone Industry Storage and Handling

18. Choose the Right Slab Transport A-Frame

A transport A-frame should be selected according to the actual granite-handling application.

Compare:

  • Single-sided or double-sided loading.
  • Maximum intended load.
  • Maximum slab dimensions.
  • Frame dimensions.
  • Wheel configuration.
  • Contact protection.
  • Indoor or outdoor use.
  • Manual or powered movement.

Factories comparing A-frame systems can review this guide on choosing the right slab transport A-frame for stone logistics.

19. Protect Finished Granite Countertops Differently

A finished countertop may be more vulnerable than a full slab because fabrication creates weaker areas.

Finished pieces may include:

  • Sink openings.
  • Cooktop cutouts.
  • Thin rails.
  • Polished edges.
  • Irregular shapes.
  • Drilled holes.

These pieces may require additional support around vulnerable areas.

Finished surfaces and edges should also be protected from unnecessary contact with hard components where appropriate.

20. Keep Workers Away from Hazardous Load Zones

Heavy slabs should always be treated as potentially hazardous loads.

Workers should avoid standing where they could be trapped between the slab and:

  • A storage rack.
  • A wall.
  • A machine.
  • A forklift.
  • Another slab.

Workers should also remain clear of suspended loads.

Communication between lifting-equipment operators and surrounding personnel should be controlled during transfer operations.

21. Inspect Transport Equipment Before Use

Slab carts, A-frames and other transport systems should be inspected according to their use and manufacturer recommendations.

Typical inspection points include:

  • Frame deformation.
  • Cracked or damaged welds.
  • Loose fasteners.
  • Wheel damage.
  • Worn bearings.
  • Damaged protective pads.
  • Corrosion.
  • Brake condition.
  • Locking mechanisms.

Equipment involved in an impact, overload or unusual event should be evaluated before returning to normal use.

22. Create a Standard Granite Slab Handling Procedure

Standardizing the process can reduce variation between employees and shifts.

A practical procedure may include:

  1. Identify the slab and destination.
  2. Confirm slab dimensions and weight.
  3. Inspect for existing damage.
  4. Select suitable lifting equipment.
  5. Select suitable transport equipment.
  6. Inspect the equipment.
  7. Clear the travel route.
  8. Lift the slab under controlled conditions.
  9. Position it securely on the cart or A-frame.
  10. Move at a controlled speed.
  11. Transfer the slab to its destination.
  12. Confirm stable support before releasing the lifting device.

If X, Choose Y: Granite Slab Handling Guide

  • If the slab must be lifted from storage: use an appropriate crane, clamp, vacuum lifter or lifting system.
  • If the slab needs near-vertical transport: evaluate a suitable A-frame transport cart.
  • If the travel distance is short: a manual slab cart may be practical.
  • If heavy slabs move frequently over longer distances: consider powered transport equipment.
  • If aisles are narrow: evaluate a compact slab trolley or dolly.
  • If the material is a finished countertop: prioritize support around cutouts and narrow sections.
  • If several workers repeatedly wait for one crane: review the complete material-flow system rather than only adding more labor.
  • If slabs are repeatedly damaged at one transfer point: investigate that transfer method before changing the entire workflow.

Common Granite Slab Handling Mistakes

Mistake Possible Result Better Practice
Insufficient equipment capacity Equipment overload or reduced control Confirm rated capacity before movement
Moving too quickly Load movement and impact Use controlled acceleration, turning and stopping
Poor slab support Cracks, chips or unstable positioning Use equipment designed for the load geometry
Blocked transport route Sudden stops or awkward steering Inspect and clear the route before movement
Too many transfers More handling time and damage opportunities Simplify the material route where practical
Ignoring damaged equipment Reduced reliability Inspect and evaluate before continued use

Granite Slab Handling Safety Checklist

  • Confirm slab dimensions and weight.
  • Inspect the granite before handling.
  • Confirm equipment rated capacity.
  • Inspect the cart, A-frame, clamp or lifter.
  • Check protective contact surfaces.
  • Clear the transport route.
  • Confirm aisle and doorway clearance.
  • Keep the load stable and controlled.
  • Move slowly through corners.
  • Keep personnel clear of pinch and suspended-load zones.
  • Prepare the destination support before transfer.
  • Confirm stable support before releasing the lifting equipment.

How to Improve Granite Slab Transport Efficiency

Safe handling and efficient handling should support each other.

Factories can improve both by:

  • Reducing unnecessary transfers: create a more direct storage-to-production route.
  • Using staging areas: prepare slabs before machines require them.
  • Matching carts to production volume: avoid transport bottlenecks caused by insufficient equipment.
  • Separating raw and finished material: use suitable transport methods for each.
  • Maintaining clear aisles: keep routes predictable.
  • Tracking handling damage: identify where problems occur most frequently.
  • Standardizing procedures: reduce variation between shifts and operators.

The objective is not simply to move stone faster.

It is to reduce the total amount of handling required to move granite from receiving through fabrication and final shipment.

How to Measure Granite Slab Handling Performance

Factories can monitor a few practical indicators:

Metric What to Record
Moves per Slab Number of separate handling events from storage to production
Transport Time Minutes required for each movement
Workers Required Number of employees involved in routine transfers
Waiting Time Time waiting for cranes, forklifts or carts
Damage Incidents Chips, cracks or surface damage associated with handling

This helps identify whether the main problem is equipment capacity, factory layout, route design or unnecessary transfers.

How to Evaluate a Granite Slab Handling Equipment Supplier

A professional supplier should ask how the equipment will actually be used.

Buyers should compare:

  • Rated capacity.
  • Product dimensions.
  • Frame configuration.
  • Wheel specifications.
  • Protective contact materials.
  • Surface treatment.
  • Fabrication quality.
  • Inspection procedures.
  • Replacement parts.
  • OEM capability.
  • Export packaging.

The supplier should also request information about:

  • Granite slab dimensions.
  • Maximum load.
  • Travel distance.
  • Floor conditions.
  • Aisle width.
  • Existing cranes or forklifts.

China Granite Slab Handling Equipment Manufacturer and OEM Considerations

Stone factories, equipment distributors and fabrication businesses sourcing handling equipment from China may choose between standard models and OEM designs.

Customization may include:

  • Rated capacity.
  • Frame dimensions.
  • Support height.
  • Wheel configuration.
  • Protective padding.
  • Surface treatment.
  • Handles and locking mechanisms.
  • Product color.

However, customization should begin with technical information rather than cosmetic details.

Provide the manufacturer with:

  • Maximum slab dimensions.
  • Maximum intended load.
  • Transport orientation.
  • Travel distance.
  • Floor conditions.
  • Aisle width.
  • Loading and unloading method.

Questions to Ask Before Buying Granite Slab Transport Equipment

  • What is the heaviest granite slab?
  • What are the maximum slab dimensions?
  • How far will each slab travel?
  • Will raw slabs and finished countertops use the same equipment?
  • What is the narrowest aisle?
  • Are there floor joints, ramps or slopes?
  • How will the slab be loaded onto the cart?
  • What lifting equipment is already available?
  • How many movements occur each day?
  • Will the equipment be used indoors or outdoors?
  • Does the equipment need to move through doorways?
  • Are finished pieces likely to contain cutouts or narrow sections?

Soft CTA: Map the Granite Handling Route Before Buying Equipment

Before requesting a quotation, map one complete granite slab movement through the factory.

Record where the slab begins, how it leaves storage, which equipment lifts it, how far it travels, where workers wait and where the material is transferred.

Then provide Speedone with:

  • Maximum slab dimensions.
  • Maximum load weight.
  • Transport distance.
  • Floor condition.
  • Aisle width.
  • Existing lifting equipment.
  • Photos or drawings of the handling route.

This makes it easier to determine whether the application requires a slab transport cart, A-frame, trolley, lifting clamp, forklift attachment or a combination of several stone-handling systems.

References and Practical Safety Resources

  • Equipment manufacturer’s rated-capacity, operating, inspection and maintenance instructions.
  • Applicable workplace material-handling requirements.
  • Applicable local lifting and industrial transport requirements.
  • Internal factory lifting and traffic-management procedures.
  • Stone-specific handling procedures for large slabs and fabricated countertops.

Final Note / Practical Takeaway

Expert Commentary & Analysis:
The safest way to move granite slabs is to treat lifting, transport and transfer as one connected process. Suitable lifting equipment should place the slab onto stable transport support, the transport route should be planned before movement begins, and the destination should be ready before the slab is released. Good slab handling safety also reduces unnecessary transfers, protects finished edges and helps prevent transport from becoming a production bottleneck. The best handling system is therefore the one that matches the slab weight, dimensions, factory layout, equipment and actual material flow.

Frequently Asked Questions About Moving Granite Slabs

1. What is the safest way to move granite slabs?

The safest method depends on slab dimensions, weight, travel route and operating environment. Granite slabs are commonly handled using suitable lifting clamps, vacuum lifters, cranes, slab transport carts or A-frame equipment with appropriate rated capacity and support.

2. Can granite slabs be moved on an A-frame cart?

Yes. A properly selected A-frame cart can provide angled support for granite slabs during factory or warehouse movement. The equipment should match the slab dimensions, load, floor conditions and intended application.

3. How can granite slab damage be reduced during transport?

Use suitable load-rated equipment, maintain stable support, protect intended contact areas, clear the travel route, avoid sudden turns and stops and reduce unnecessary transfers between different pieces of equipment.

4. What should be checked before moving a granite slab?

Check slab dimensions, weight, existing damage, lifting equipment, transport cart condition, route clearance, floor condition and destination support before movement begins.

5. Why is slab handling safety important in a stone factory?

Granite slabs are heavy and valuable. Controlled slab handling helps reduce product damage, equipment problems, production delays and dangerous uncontrolled slab movement.

6. What type of cart is best for moving granite slabs?

The best cart depends on load weight, slab dimensions, travel distance, aisle width and floor conditions. A-frame carts can be useful for angled support, while compact slab carts or dollies may be better in narrower areas.

7. Can one transport cart be used for raw slabs and finished countertops?

Sometimes, but not always. Finished countertops may contain cutouts, polished edges and narrow sections that require different support from full raw slabs. The cart should match the geometry of the finished product.

8. What information should I send a granite slab handling equipment manufacturer?

Provide the maximum slab dimensions, maximum load weight, transport orientation, travel distance, floor condition, aisle width, lifting method, frequency of use and photos or drawings of the handling route.

Henry

Hi, I’m the author of this post, and I have been in this field for more than 16 years. If you need OEM&ODM service for stone tools, feel free to ask me any questions.

Connect with me
What's More?



    Leave Your Message



      YOUR CART
